美標API三偏心電動法蘭連接蝶閥Three Eccentric Electric Flanged Butterfly Valve

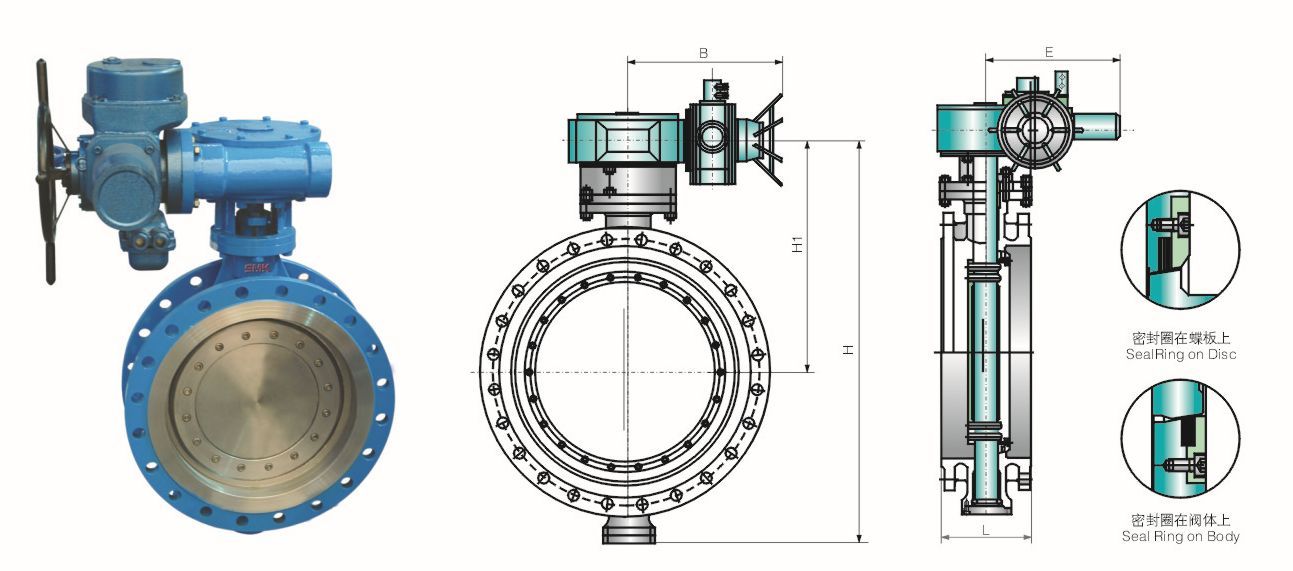

主要外形尺寸及重量/ Main size of outside & weight
| SABDF3H-150Lb |
| NPS |
3" |
4" |
6n |
8n |
10" |
12" |
14" |
16" |
18" |
20" |
24" |
28" |
30" |
32" |
36" |
| 短結構 Short pattern |
114 |
127 |
140 |
152 |
165 |
178 |
190 |
216 |
222 |
229 |
267 |
292 |
318 |
318 |
330 |
| 長結構 Long pattern |
203 |
229 |
267 |
292 |
330 |
356 |
381 |
406 |
432 |
457 |
508 |
610 |
610 |
660 |
711 |
| H |
513 |
535 |
602 |
745 |
805 |
883 |
965 |
1033 |
1120 |
1186 |
1380 |
1587 |
1650 |
1717 |
1870 |
| H1 |
263 |
282 |
322 |
296 |
325 |
365 |
408 |
443 |
485 |
518 |
625 |
745 |
777 |
810 |
875 |
| E |
180 |
180 |
180 |
370 |
370 |
370 |
370 |
370 |
370 |
370 |
370 |
515 |
515 |
515 |
540 |
| B |
178 |
178 |
178 |
235 |
235 |
235 |
235 |
235 |
235 |
235 |
235 |
245 |
245 |
245 |
360 |
| 重量 Weight(kg) |
38 |
46 |
63 |
92 |
138 |
202 |
241 |
338 |
393 |
560 |
718 |
─ |
─ |
─ |
─ |
| SABDF3H-300Lb |
| NPS |
3" |
4" |
6" |
8" |
10" |
12" |
14" |
16" |
18" |
20M |
24" |
28" |
30" |
32" |
36" |
| 短結構 Short pattern |
180 |
190 |
210 |
230 |
250 |
270 |
290 |
310 |
330 |
350 |
390 |
─ |
─ |
─ |
─ |
| 長結構 Long pattern |
282 |
305 |
403 |
419 |
457 |
502 |
762 |
838 |
914 |
991 |
1143 |
─ |
─ |
─ |
─ |
| H |
530 |
552 |
610 |
755 |
816 |
912 |
980 |
1057 |
1140 |
1243 |
1420 |
1812 |
1906 |
2021 |
2327 |
| H1 |
253 |
274 |
351 |
392 |
480 |
515 |
555 |
590 |
636 |
685 |
934 |
1039 |
1060 |
1120 |
1190 |
| E |
180 |
180 |
180 |
370 |
370 |
370 |
370 |
370 |
370 |
515 |
817 |
817 |
817 |
817 |
973 |
| B |
178 |
178 |
178 |
235 |
235 |
235 |
235 |
235 |
235 |
245 |
351 |
351 |
351 |
351 |
440 |
| 重量 Weight(kg) |
43 |
51 |
67 |
107 |
150 |
225 |
266 |
369 |
429 |
590 |
766 |
─ |
─ |
─ |
─ |
