德標直通式波紋管截止閥/Forging and stamping corrugated pipe globe valve ace.to DIN

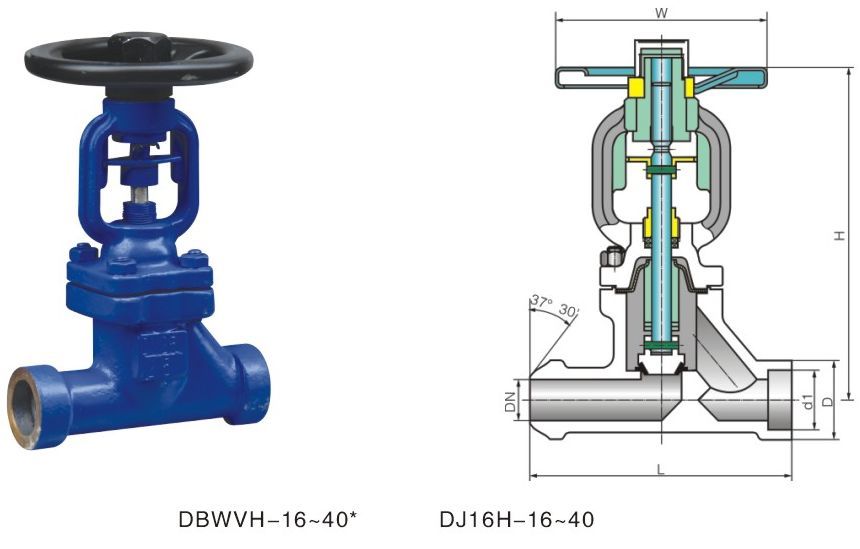

性能及外型尺寸/Function and featurse size
| DN |
PN16 |
PM25 |
PN40 |
| L |
H |
W |
L |
H |
W |
L |
H |
W |
| 15 |
130 |
174 |
120 |
130 |
174 |
120 |
130 |
174 |
120 |
| 20 |
150 |
176 |
140 |
150 |
176 |
140 |
150 |
176 |
140 |
| 25 |
160 |
207 |
140 |
160 |
207 |
140 |
160 |
207 |
140 |
| 32 |
180 |
207 |
160 |
180 |
207 |
160 |
180 |
207 |
160 |
| 40 |
200 |
210 |
160 |
200 |
210 |
160 |
200 |
210 |
160 |
| 50 |
230 |
225 |
180 |
230 |
225 |
180 |
230 |
225 |
180 |
| 公稱壓力(MPa) Nominal pressure |
1.6MPa |
2.5MPa |
4.0MPa |
| 殼體試驗(MPa)Shell test |
2.4MPa |
3.8MPa |
6.0MPa |
| 密封試驗(MPa)Sealing test |
1.8MPa |
2.8MPa |
4.4MPa |
| 低壓密封試驗Sealing test |
1.0MPa |
1.0MPa |
1.0MPa |
| 適用溫度(c)Suitable temp. |
-20~350°C |
| 使用介質Suitable madium |
易燃易爆有毒氣體介質、水、蒸氣、油品等 Water oil & gas |
| 1 |
結構長度標準：DIN3202
Structural length:DIN3202 |
| 2 |
對焊口尺寸：GB12224 To crater size: GB12224 |
| 3 |
檢驗試驗標準：GB/T 13927 Test inspection:GB/T 13927 |
