ZMX PF-Fs型氣動襯氟塑單座調節閥/Pneumatic fluoroplastic lining single seat control valve
允許壓差：表3/Permitted differential pressure: table 3
| 供氣壓力 Supply pressure (Mpa) |
彈簧范圍 Scope of spring (KPa) |
公稱通徑 Nominal diameter (Dn) |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
150 |
| 閥座直徑 Diameter of valve seat (Dn) |
10 12 15 20 |
26 |
32 |
40 |
50 |
65 |
80 |
100 |
150 |
| 0.14 |
20-100 |
允許壓差 permitted differential pressureAP(Kpa) |
1.6 |
0.8 |
0.5 |
0.5 |
0.3 |
0.25 |
0.2 |
0.12 |
0.08 |
| 0.24 |
40-200 |
1.2 |
1.1 |
0.7 |
0.65 |
0.45 |
0.28 |
0.20 |
注：流幵流態，關閉時p2=0

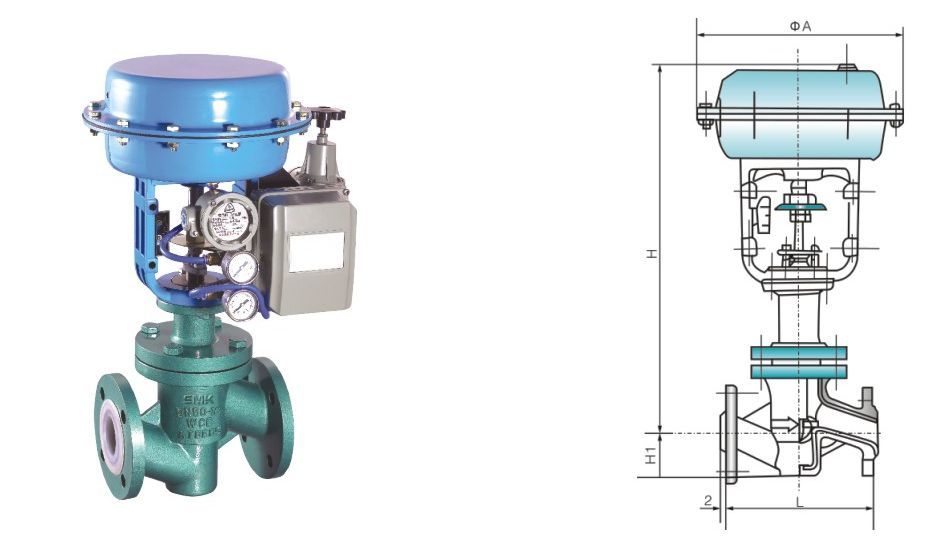

外形尺寸表4/Overall dimension: table4
| 公稱通徑DN(mm) Nominal diameter |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
150 |
| L |
180 |
185 |
200 |
220 |
250 |
275 |
300 |
350 |
480 |
| A |
245 |
245 |
245 |
290 |
290 |
362 |
362 |
362 |
454 |
| H |
445 |
485 |
495 |
523 |
532 |
697 |
699 |
699 |
817 |
| H1 |
65 |
70 |
80 |
71 |
88 |
102 |
140 |
170 |
190 |
| 重量Weight |
17 |
19 |
21 |
28 |
315 |
54 |
64 |
80 |
120 |
型號編制說明/Model deseription:
| Z |
M |
X |
|
P |
F |
|
Fs |
閥芯閥座材質Fs:F4、F46 F40、F3 Spool
valve seat material quality Fs: F4、F46、F40、F3 |
公稱壓力：10-1.0MPa 16-1.6MPa
Nominal pressure：10-1.0Mpa 16-1.6Mpa |
閥體內腔內件均襯F4、F46等
The inner chamber and inner elements of the valve body are Lined with F4、F46 |
單座調節閥
Single seat control valve |
作用方式:A為正作用(氣關式)B為反作用(氣開式)
Action form：A Is positive action(air-close type) B Is negative action(air-open type) |
輕小型系列
Portable series |
氣動薄膜執行機構
Pneumatic film actuating mechanism |
執行器大類 Actuator |
