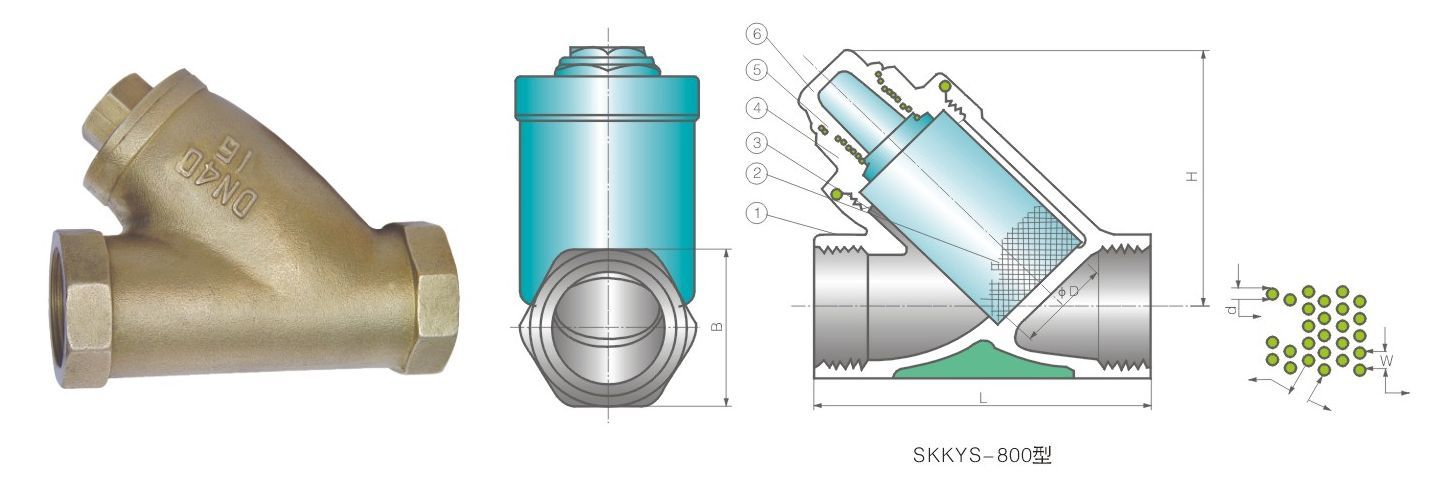

不銹鋼過濾器Stainless steel strainer
主要零件材料/ Materials of main parts
| 序號NO. |
零件名稱Part name |
材質 Material |
| 1 |
閥體Body |
不銹鋼CF8M/CF8 |
| 2 |
濾網Screen |
不銹鋼SS304 |
| 3 |
墊片Gasket |
聚四氟乙烯PTFE |
| 4 |
閥蓋Bonnet |
不銹鋼CF8M/CF8 |
| 5 |
墊片Gasket |
聚四氟乙烯PTFE |
| 6 |
逆止蓋Blow off |
不銹鋼CF8M/CF8 |
產品特征/Specifications:
| 公稱壓力 Working Pressure |
1.6-4.0MPa(800PSI) |
| 適用溫度范圍Temperature Range |
-20~232℃-350℃ |
| 適用介質 Suitable medium |
水、油、氣及某些腐蝕性液體(W.O.G)Water, Oil air and some Corrosive |
| 螺紋類型 liuqid Thread type |
G • NPT•BSPT.BSP.DIN259/2999 |
主要外形尺寸及重量/Main size of outside & weight
| SIZE |
D |
B |
H |
L |
WT(g) |
| 1/4" |
10 |
24 |
43 |
65 |
290 |
| 3/8" |
12 |
24 |
43 |
65 |
290 |
| 1/2" |
15 |
26 |
43 |
65 |
300 |
| 3/4" |
20 |
33 |
50 |
80 |
500 |
| 1" |
25 |
41 |
60 |
90 |
750 |
| 1¼" |
32 |
49 |
64 |
107 |
1000 |
| 1½" |
40 |
56 |
70 |
118 |
1300 |
| 2" |
50 |
69 |
88 |
140 |
|
