Y型過濾器Y-Type strainer
產品規范
Product Specification |
設計規范
Design Spec. |
結構長度
Face to Face |
連接法蘭
Flange End |
試驗與檢驗
Test &Check |
產品標識
Marking |
供貨規范
Supply |
| HG/T 21637 |
GB/T12221 |
JB/T 79 |
JB/T 9092 |
GB/T 12220 |
JB/T 7928 |
產品性能規范/Chief property and specification
型號
Type |
連接方式
Conjunction method |
公稱壓力
PN(MPa) |
耐壓試驗壓力
(MPa) |
工作壓力
(MPa) |
殼體材料
Material |
過濾網材料
Strainer material |
網眼總面積 |
| SY4P-10 |
法蘭Flange |
1.0 |
1.1 |
1.0 |
灰鑄鐵 Gast ferrosteel |
不銹鋼 Stainless steel |
3~4DN |
| SY4P-16 |
法蘭Flange |
1.6 |
1.76 |
1.6 |
球墨鑄鐵 Ductile cast iron |
| SY4P-25 |
法蘭Flange |
2.5 |
2.75 |
2.5 |
碳鋼 Carbon steel |
主要零件材料/Material for main parts
零件名稱
Part Name |
零部件材料
Pad Material |
| 閥體/閥蓋Body/Bonnet |
25 |
WCB |
CF8 |
CF8M |
CF3 |
CF3M |
| 網架 Disc/Stem |
25 |
35 |
1Cr18Ni9Ti |
1Cr18Ni12Mo2Ti |
00Cr18Ni10 |
00Cr17Ni14Mo2 |
| 濾網 Strainer |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
00Cr18Ni10 |
| 墊片Gasket |
18-8/柔性石墨 18-8/Flexible Graphite |
| 螺栓Bolt |
35 |
1Cr17Ni2 |
1Cr18Ni9Ti |
| 適用溫度 Suitable temp. |
-29~+425℃ |
-40~+200℃ |
-40~+200℃ |
| 適用介質 Suitable medium |
水、油品、蒸汽 Water, Oil, Steam |
硝酸類 Nitric Acid |
醋酸類 Acetic Acid |

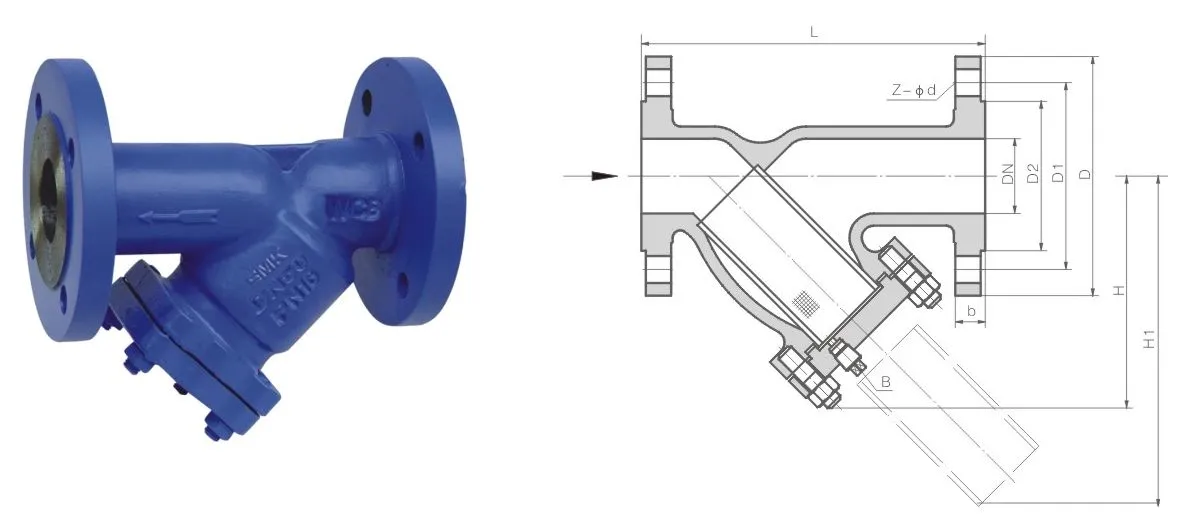

主要外形和連接尺寸 Main external and connection dimension 單位Unit: mm
| 公稱通徑 DN |
L |
H |
H1 |
B |
有效過濾面積Strainer Area(m²) |
WT(Kg) |
| SY14C |
SY14S |
| PN1.0 |
PN2.5 |
PN4.0 |
PN1.0 |
PN2.5 |
PN4.0 |
| SY14C-H10 SY14C-H16 SY14C-H25 SY14C-H40 SY14S-H10 SY14S-H16 SY14S-H25 SY14S-H40 |
| 15 |
110 |
87 |
120 |
ZG3/8" |
0.00185 |
2.62 |
2.74 |
2.81 |
2.80 |
2.85 |
2.85 |
| 20 |
130 |
105 |
148 |
ZG1/2" |
0.00281 |
3.00 |
3.06 |
3.06 |
3.05 |
3.11 |
3.11 |
| 25 |
150 |
114 |
176 |
ZG1/2" |
0.00343 |
3.70 |
3.78 |
3.98 |
3.80 |
3.84 |
3.84 |
| 32 |
160 |
124 |
193 |
ZG1/2" |
0.00486 |
5.35 |
5.46 |
5.46 |
5.43 |
5.54 |
5.54 |
| 40 |
200 |
156 |
237 |
ZG1/2" |
0.00767 |
6.54 |
6.60 |
7.01 |
6.62 |
6.72 |
6.72 |
| 50 |
220 |
181 |
270 |
ZG1/2" |
0.01160 |
9.21 |
9.46 |
9.97 |
10.9 |
11.1 |
11.1 |
| 65 |
290 |
250 |
369 |
ZG3/4" |
0.02111 |
20.2 |
21.6 |
22.7 |
22.4 |
23.9 |
24.1 |
| 80 |
310 |
280 |
429 |
ZG3/4" |
0.03029 |
23.4 |
25.1 |
27.4 |
26.6 |
27.7 |
28.5 |
| 100 |
350 |
320 |
488 |
ZG3/4" |
0.04033 |
31.2 |
34.2 |
38.3 |
34.6 |
37.1 |
38.8 |
| 125 |
400 |
374 |
547 |
ZG3/4" |
0.05589 |
44.1 |
49.1 |
56.9 |
50.5 |
54.6 |
57.8 |
| 150 |
480 |
430 |
622 |
ZG3/4" |
0.07709 |
54.5 |
61.3 |
72.0 |
63.9 |
70.7 |
74.2 |
| 200 |
550 |
515 |
741 |
ZG3/4" |
0.11967 |
81.0 |
93.3 |
127.7 |
85.3 |
97.0 |
120.5 |
主要外形和連接尺寸 Main external and connection dimension 單位unit: mm
| NPS |
DN |
L |
H |
H1 |
B |
有效過濾面積Strainer Area(m²) |
WT(Kg) |
| in |
mm |
SY14C |
SY14S |
| 150Lb |
300Lb |
150Lb |
300Lb |
| SY14C-A150 SY14S-A150 SY14C-H300 SY14S-H300 |
| 1/2 |
15 |
110 |
87 |
120 |
NTP1/8" |
0.00185 |
1.96 |
2.47 |
2.10 |
2.51 |
| 3/4 |
20 |
130 |
105 |
148 |
NTP1/2" |
0.00281 |
2.25 |
3.35 |
2.29 |
3.40 |
| 1 |
25 |
150 |
114 |
176 |
NTP1/2" |
0.00343 |
3.05 |
4.19 |
3.10 |
4.25 |
| 1¼ |
32 |
160 |
124 |
193 |
NTP1/2" |
0.00486 |
4.14 |
5.85 |
4.21 |
5.64 |
| 1½ |
40 |
200 |
156 |
237 |
NTP1/2" |
0.00767 |
6.09 |
8.49 |
6.20 |
8.63 |
| 2 |
50 |
220 |
181 |
270 |
NTP1/2" |
0.01160 |
8.57 |
11.0 |
9.68 |
11.2 |
| 2½ |
65 |
290 |
259 |
369 |
NTP3/4" |
0.02111 |
22.7 |
27.7 |
23.6 |
29.0 |
| 3 |
80 |
310 |
293 |
429 |
NTP3/4" |
0.03029 |
25.2 |
37.6 |
27.8 |
38.2 |
| 4 |
100 |
350 |
324 |
488 |
NTP3/4" |
0.04033 |
33.7 |
58.0 |
36.7 |
57.2 |
| 5 |
125 |
400 |
390 |
547 |
NTP3/4" |
0.05589 |
48.1 |
76.4 |
52.1 |
76.6 |
| 6 |
150 |
480 |
448 |
622 |
NTP3/4" |
0.07709 |
59.7 |
112.1 |
66.8 |
104.4 |
| 8 |
200 |
550 |
535 |
741 |
NTP3/4" |
0.11967 |
87.3 |
183.2 |
91.2 |
175.6 |
