電動調節閥Electric regulating valve
| 公稱 通徑 DN |
L |

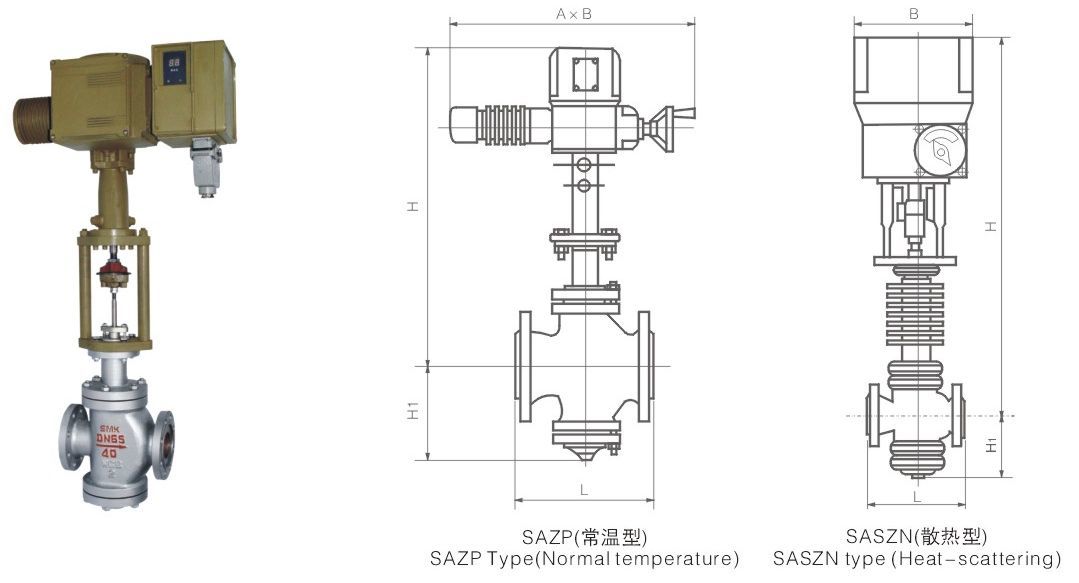

SAZP 型 Type |
SASZN型 Type |
A (長） Long |
B (寬） Width |
電動執行 機構型號 Electric administer framework type |
出軸推力 MPa (kgf/cm2) Output thrust |
行程 h(mm) Journey |
額定流量系數c Rating flux coefficient |
| PN1.6 (MPa) |
PN4.0 (MPa) |
PN6.4 (MPa) |
H |
H1 |
H |
H1 |
^^ |
| 常溫型 Normal temperature |
散熱型Heat -scattering type |
常溫型 Normal temperature |
散熱型Heat -scattering type |
單座One-seater |
雙座Two-seater |
| 20 |
180 |
185 |
190 |
495 |
655 |
95 |
─ |
─ |
─ |
490 |
230 |
ZAZ-25 KDZ-310 |
2.5, 40 (25.400) |
10 |
1.2-5 |
─ |
| 25 |
185 |
190 |
205 |
767 |
928 |
112 |
787 |
937 |
117 |
DKZ-310 |
40 (400) |
16 |
8 |
10 |
| 32 |
200 |
210 |
220 |
793 |
940 |
118 |
793 |
943 |
120 |
12 |
16 |
| 40 |
220 |
230 |
240 |
812 |
963 |
129 |
832 |
982 |
139 |
25 |
20 |
25 |
| 50 |
250 |
255 |
265 |
842 |
993 |
144 |
842 |
992 |
144 |
32 |
40 |
| 65 |
275 |
285 |
295 |
967 |
1127 |
178 |
987 |
1147 |
188 |
520 |
DKZ-410 |
64 (640) |
40 |
50 |
63 |
| 80 |
305 |
310 |
325 |
990 |
1142 |
191 |
1017 |
1177 |
208 |
80 |
100 |
| 100 |
350 |
355 |
370 |
999 |
1151 |
195 |
1041 |
1207 |
220 |
120 |
160 |
| 125 |
410 |
425 |
440 |
1092 |
1307 |
245 |
1142 |
1357 |
270 |
60 |
200 |
250 |
| 150 |
450 |
460 |
475 |
1112 |
1327 |
255 |
1162 |
1377 |
280 |
280 |
400 |
| 200 |
550 |
560 |
570 |
1187 |
1402 |
290 |
1244 |
1459 |
320 |
450 |
630 |
| 250 |
670 |
740 |
750 |
─ |
─ |
─ |
1472 |
1599 |
440 |
630 |
260 |
DKZ-510 |
160 (1600) |
100 |
700 |
1000 |
| 300 |
770 |
805 |
820 |
─ |
─ |
─ |
1530 |
1747 |
502 |
1000 |
1600 |
